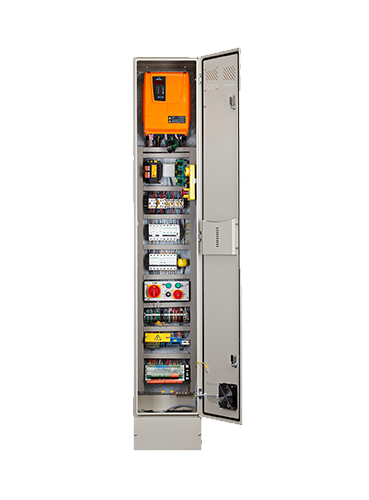

ARCODE Elevator Command Panels

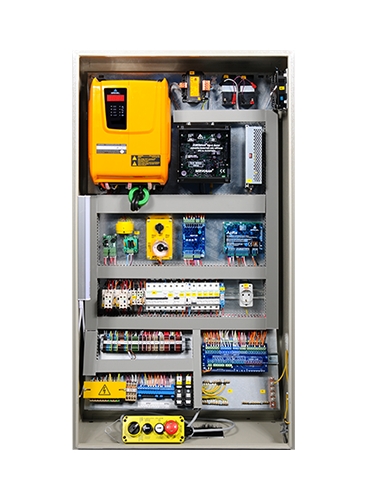

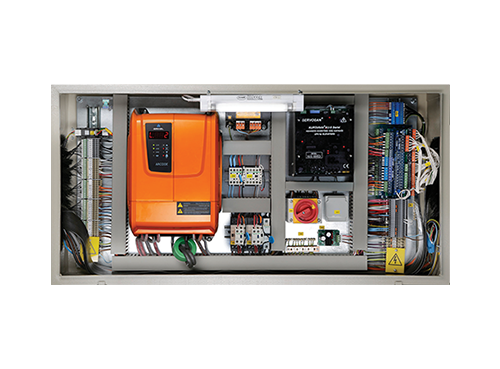

ARCODE Panel

Compliance to Standards

En 81/1-2/20+A3

Number of Stops

64 Stops

Control Type

Single Button Pickup Double Button Pickup

Drive Type

Stepless Quick Gear Machine Gearless Machine (Machine with Ring or MRL)

Elevator Speed

Up to 4 m/s

Group Control

Up to 8 Elevators

Serial Communication

With Floor and Cabin

Cabin Position Information

Magnetic Switches, Encoder System

Automatic Door Control

Single Door, Double Door

Door Bridging

Not Available

Display Outputs

7 Segments, Gray/Binary Code LCD Output

Language Options

Turkish, English, Russian, French, Dutch, Spanish, Swedish, Polish, German, Slovak.

Any kind of automatic door control
1 piece of door control inputs and outputs in the revision box, 2 in the control panel
Built-in motor phase protection
Controlling ARCODE from any point with the hand-held terminal connected to the CANbus line
Leakage current protected cabinet and well feed fuses
Well lighting control with pulse current switch (with buttons from the top of the cabinet and from the bottom of the well)
Emergency alarm siren (with buttons from the top and bottom of the cabinet)
Special connections for safety circuits in the control panel, revision box and downhole box

Serial cabinet communication via CANbus line
One-to-one connection with the plug-in flat cable between the control panel and the revision box
Plug-and-play connection between cabinet operation panel and revision box with plug-in single cable

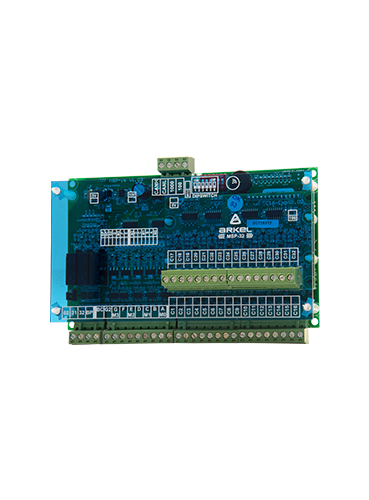

Serial communication via CANbus line or parallel floor connection with MSP16 card
Well CANbus line extending along the whole well, with plug cables from floor to floor
Plug-in connection with plug-in cable attached to the CANbus line for each floor well for floor control panel
Door contact installation extending along the whole well, with plug cables from floor to floor
Connection with plug-in cables for floor-to-door contact installation for floor door plug- lock contacts
Plug-in connection with downhole box via single cable
Independent door control according to stops with double door support
Recovery in floor at easy direction with 1 phase 220VAC UPS or battery group connection
Providing solutions to short floors thanks to direct stop feature
