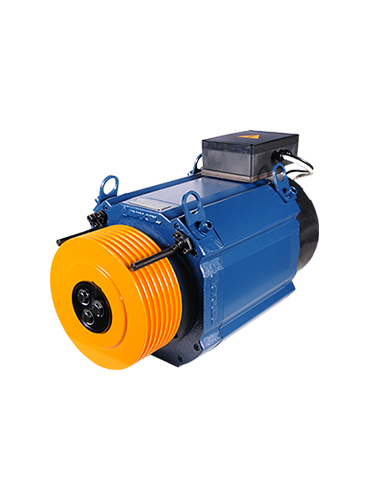

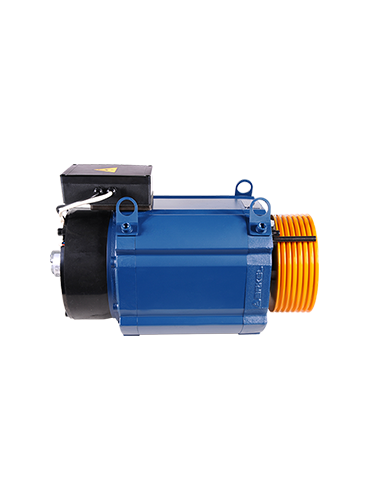

ARS Motor Series
High and silent power performance, a strong body, easy installment option that is optimized with Arcode: New ARS Series gearless motor.
Max Capacity
800 KG
Suspension
2:1
Nominal Torque
250 Nm
Rated Speed
1 m/s
Sheave Diameter
210 mm
Rope Size
7x6,5 mm
Power
4,8 KW
Nominal Current
11,5 A
Voltage
380 V
Ingress Protection
IP44
