KM-30S Door Control Set

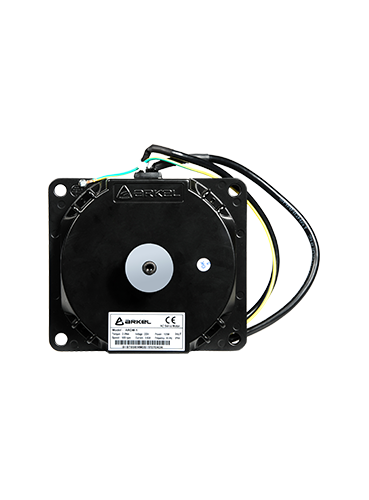

Door Controller Card with Motor
KM-30 S Card System Usage Advantages
Door Movements
Serious and Irregular
The advanced software softens the S in the navigation ramps and permits smooth but smooth movements of the door movements with no limit switch-free algorithm
Automatic Door Status Detection
No Limit Switch Required
The door operator does not need a limit switch for operation. Door width, door open-close positions are detected automatically
Possible Door Jam
When the door is jammed, the buzzer is turned back on. The jamming is passed slowly through the perceived zone to prevent damage to the passengers and the door
Access to the Menu
Delegation
In terms of security, necessary needs and ease of setup, access to the menu has been authorized. Different levels of authority have been assigned to access the menu: producer level, basic level and restricted level
Application Flexibility
Wide Parameter Capability
For manufacturers, parameters such as motor reduction ratio, engine revolutions, drive pulley circumference, spoon opening zone, etc. can be entered for application flexibility
User Settings
For user settings, defined speed settings in centimeters per second and defined ramp paths in centimeters can be specified
Door Operation Attachment
Counter Support
Operation of the door can be monitored by the on/off counter
Fully Integrated Operation
Various Output Signals
The door can be fully opened, completely closed, and can output jammed output signals to operate the control panels fully integrated
Keyboard
All system parameters can be adjusted using the KM-30S keypad
Door Motor Control
Reduction Option
220V BLDC control with or without door gear reducer
Other Features
| Engine Type | Max. 200W |
| Engine Output Power | 0,65 A (Nominal) |
| Motor Control Shape | Vector Control |
| Engine Protection | Overloading and Short Circuit Protection |
| Encoder Type | 3 Channel Incremental Encoder |
| Encoder Voltage | 5 VDC |
| Resolution | 100-2048 pals Model |
| Door Width | 50 - 300 cm |
| Door Speed | 20 cm/sn – 99 cm/sn |
| Door Speed (Slow) | 5 cm/sn – 30 cm/sn |
- Door fully open / fully closed
- Door jam or photocell active output
- Relay contact output. For 3A, 250VAC or 30VDC
- Door open / close signal
- Slow signal / fast signal
- Photocell signal
- Ground signal
- KM-30S door card is suitable for use on fire lift doors
- With slow speed signal input, the photocell signal is blocked in long time photocell cutting and the doors are closed at slow speed (Nudging mode)
- Door speed, door position and operating status in normal operation, and error in case of normal operation
